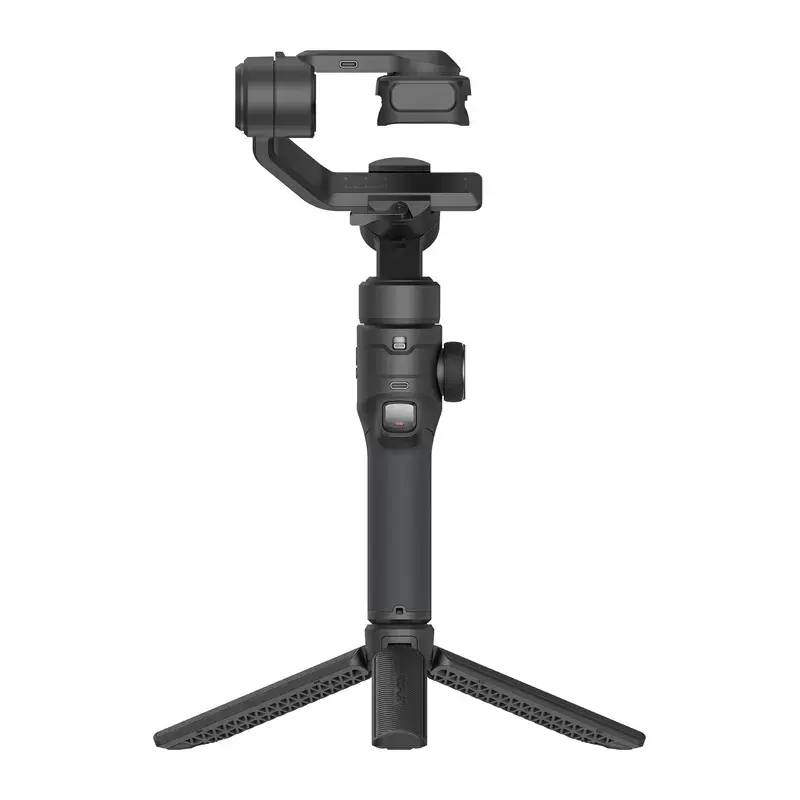

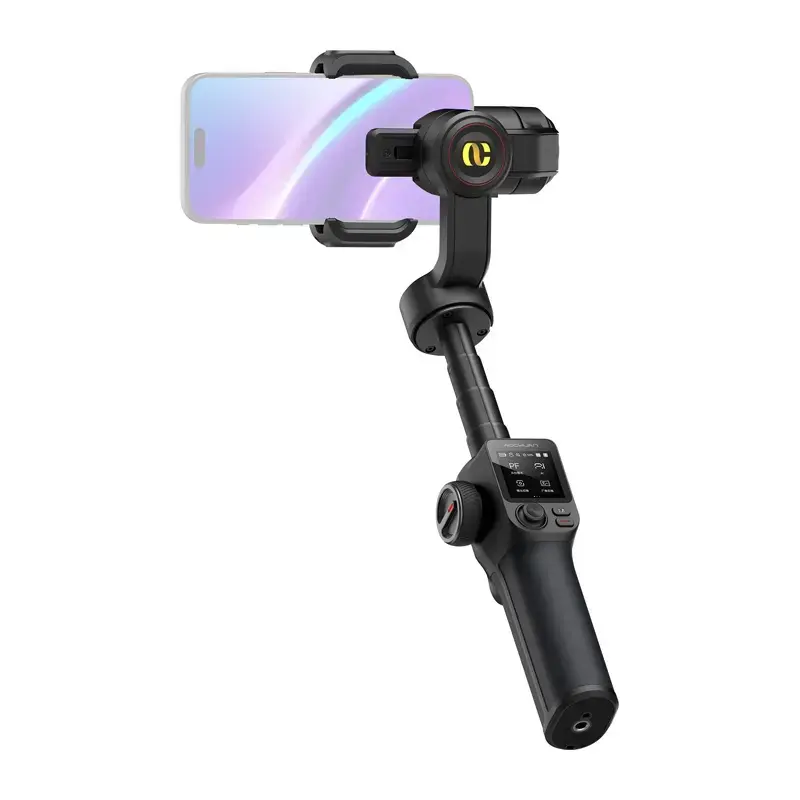

AOCHUAN S3 Gimbal with Additional Screen (Black)

AOCHUAN S3 Gimbal with Additional Screen (Black)

The AOCHUAN S3 is an advanced 3-axis gimbal for smartphones ranging from 52 to 87 mm in width and up to 12 mm in thickness, equipped with an additional touchscreen, a dual AI system, and a built-in 150-lumen LED light. The stabilizer offers 360° automatic tracking, gesture control, focus and zoom adjustment, and five operating modes: PF, F, POV, DM, and GO. The built-in aluminum telescopic arm, extending up to 128 mm, makes it easy to take selfies and wider shots, while the 2550 mAh (7.2 V) battery provides up to 10 hours of standby time or up to 6.4 hours with the light in full use. When folded, the device measures 155 × 61 × 305 mm, allowing it to be conveniently stored in the included protective case.

Smooth, shake-free footage

Professional 3-axis stabilization effectively reduces shake while walking, recording on the move, or capturing dynamic shots. This makes videos smoother and more natural-looking without the need for additional editing. The pan axis rotates a full 360°, the tilt axis offers 310°, and the roll axis 90°, providing great freedom in framing. The maximum load capacity of up to 500 g applies when the arm is not extended, allowing you to safely use most modern smartphones.

Smart Tracking and Touchless Control

The AOCHUAN S3 is equipped with an AI system featuring front and rear cameras that automatically recognizes and tracks a face or selected object. The 360° tracking feature is ideal for vlogs, live streams, recording workouts, and creating content for social media. Gesture control lets you start or stop tracking without having to approach the device. This feature is especially useful for solo creators.

Touchscreen and precise control

An additional touchscreen provides quick access to stabilizer settings and convenient switching between operating modes. This keeps the most important functions always at your fingertips, without needing to reach for your phone. The gimbal also offers smooth focus and zoom adjustment, giving you greater control over your shot composition. Intuitive operation makes the device convenient for both beginners and more advanced users.

Built-in LED light and telescopic arm

The integrated LED light, with a brightness of 150 lumens and a color temperature of 6000 K, improves the quality of recordings made after dark or indoors. The additional light helps illuminate the face better and maintain a clear image without the need for separate accessories.

Long battery life and ready-to-use kit

The 2550 mAh battery charges in about 3 hours using a 5 V / 2 A power source. The device operates in a wide temperature range from -10°C to 55°C, making it suitable for both indoor and outdoor recording. Weighing 562.5 g without the tripod, it ensures a stable grip and comfortable handling. The kit includes a tripod, a hard case, and a set of cables, making it easy to transport and allowing you to start recording immediately after unboxing.

Included

• AOCHUAN S3 Gimbal
• Tripod
• Protective case
• USB-C to USB-C cable
• USB-A to USB-C cable
• User manual



ManufacturerAOCHUANModelS3Type3-axis smartphone gimbalColorblackCompatible phone width52–87 mmMaximum phone thicknessup to 12 mmLoad capacityup to 500 g (without extension arm)Panoramic rotation range360°Tilt range310°Rotation range90°Operating modesPF / F / POV / DM / GOAI tracking360°Gesture controlYesTouchscreenYesFocus and zoom adjustmentYesBuilt-in LED light150 lmLight color temperature6000 KBatteryLi-ion 7.2 V / 2550 mAhOperating timeUp to 10 hours in standby modeOperating time with light at maximum brightnessup to 6.4 hoursCharging timeapproximately 3 hoursWeight562.5 g (without tripod)Dimensions when unfolded127 × 114 × 288 mmDimensions when folded155 × 61 × 305 mm
