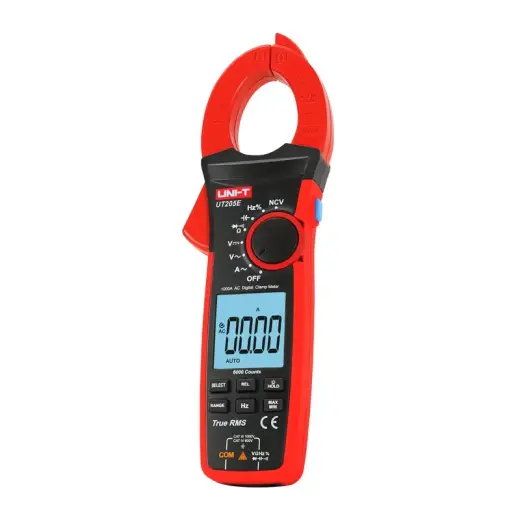

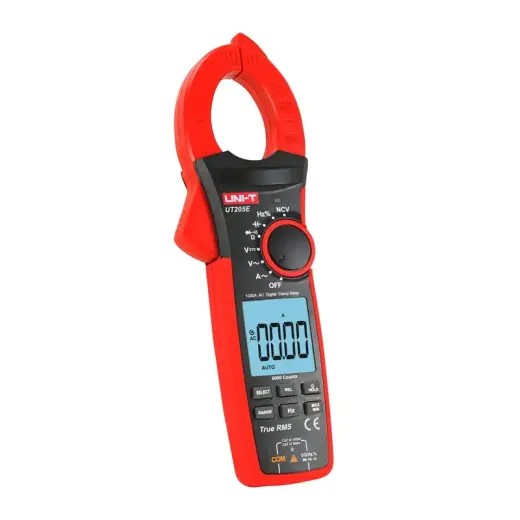

Uni-T UT205E Digital Clamp Meter
The Uni-T UT205E digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly simplifies field work and operations at switchgear panels.
Wide Measurement Range
The UT205E model allows for measuring AC current up to 1000A and AC/DC voltage up to 1000V, enabling work on more demanding installations. Additionally, it supports resistance, capacitance, frequency, and duty cycle measurements, expanding its diagnostic capabilities.
Features that make work easier
True RMS ensures more accurate measurements, while features such as NCV, backlight, and flashlight improve working comfort. Automatic range selection and a clear display facilitate quick measurements in various conditions.
Intuitive design and safety
The large screen and 42 mm jaw opening allow for comfortable work even with thick cables. The device complies with CAT III 1000V / CAT IV 600V standards, ensuring safe use.
Included
- Clamp meter
- Batteries x3
- Test leads
- User manual
Характеристики
| Штрихкод (EAN) | 6935750520536 |
|---|---|
| Вес брутто | 0,48 кг |
| Вес нетто | 0,45 кг |
| Размеры упаковки | 12 × 6 × 28 см |
| Бренд | Uni-T |
| Модель | UT205E |
| Тип | True RMS Clamp MeterAC Current1000A ±(2%+5)AC Current Range50Hz ~ 60HzAC |
| Voltage | 1000V ±(1.2%+3)DC; 1000V ±(0.5%+5)AC; Range40Hz ~ 400HzResistance60MΩ ±(1%+2)Capacitance60mF ±(4%+5)Frequency10Hz ~ 1MHz ±(0.1%+3)Duty cycle10% ~ 90% ±(2.6%+7)Maximum reading6000FunctionsTrue RMS, NCV, backlight, flashlight, automatic range switchingJaw opening42 mm |
| Power supply | 3x 1.5V battery (R03)Display43 x 45 mm |
| Dimensions | 272 x 81 x 43.5 mm |
| Вес | 465 gSafetyCAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
